Portable TV Meter (WIFI)
Portable CATV, Terrestrial, Satellite, IPTV, Optical measurement device with WIFI
- Real- time measurement
- Measure TV networks - DVB-C/T/T2/S/S2/ATV
- Measure IPTV networks
- TR 101 290 MPEG TS measurements
- Reliable scanning of the band
Use cases
What the Portable TV Meter (WIFI) solves
Overview
A portable TV measurement device with WIFI connectivity, equipped with the abilities to measure TV networks - DVB-C/T/T2/S/S2/ATV,
IPTV networks and an Optical Power Meter, the Smart Penguin offers real-time measurement of broadcast and network services to any service providers. With a battery life that can last up to 6 hours, it can be used during new installations or maintenance and repair work on components of TV/IP/Optical networks and transmitters. Besides an RF field strength meter the Smart Penguin is also an IPTV analyser, supporting RTP/UDP unicast and multicast streams.
Features
- Real- time measurement
- Measure TV networks - DVB-C/T/T2/S/S2/ATV
- Measure IPTV networks
- TR 101 290 MPEG TS measurements
- Reliable scanning of the band

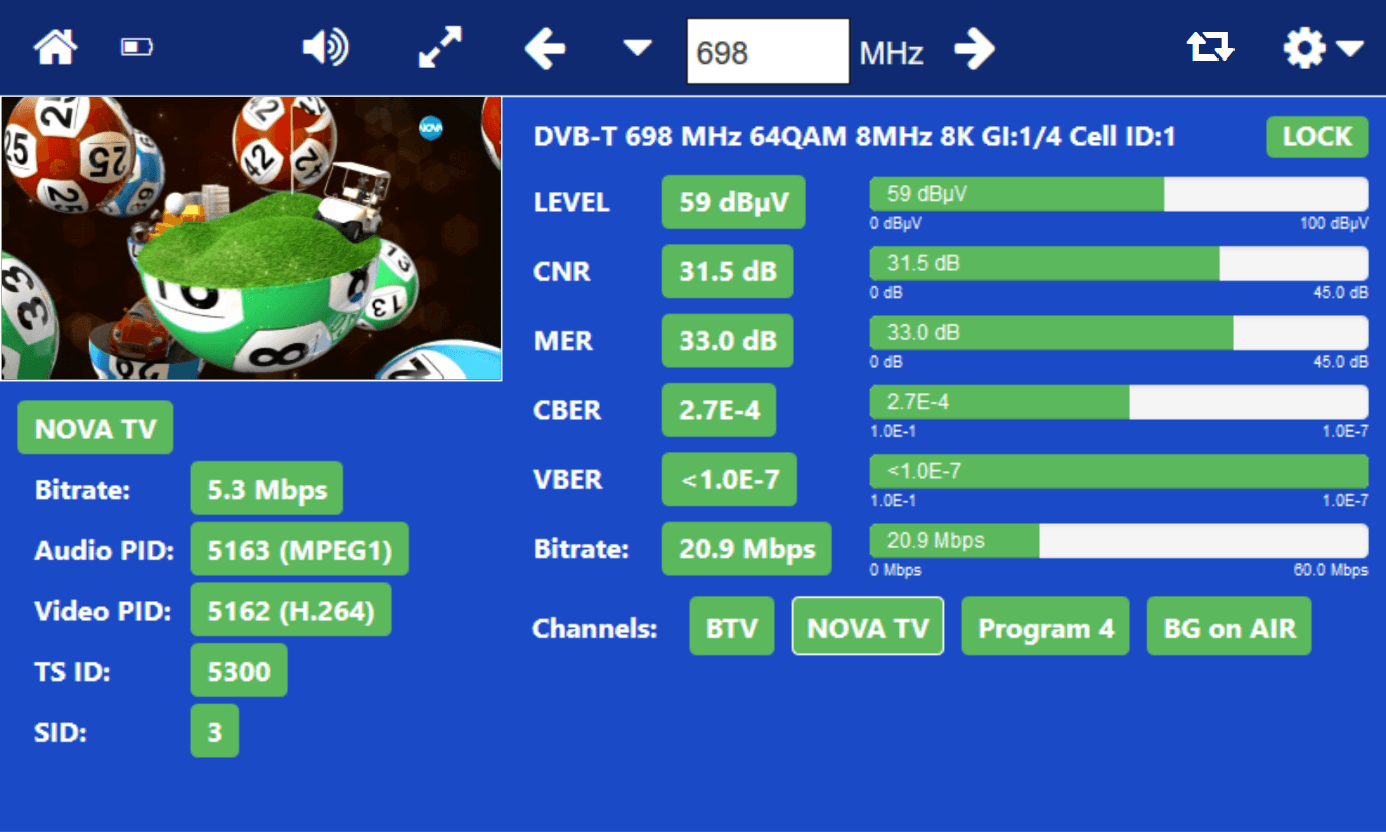

- Digital TV measurements: BER, MER, VBER, CBER, C/N, SNR, Level, Bitrates

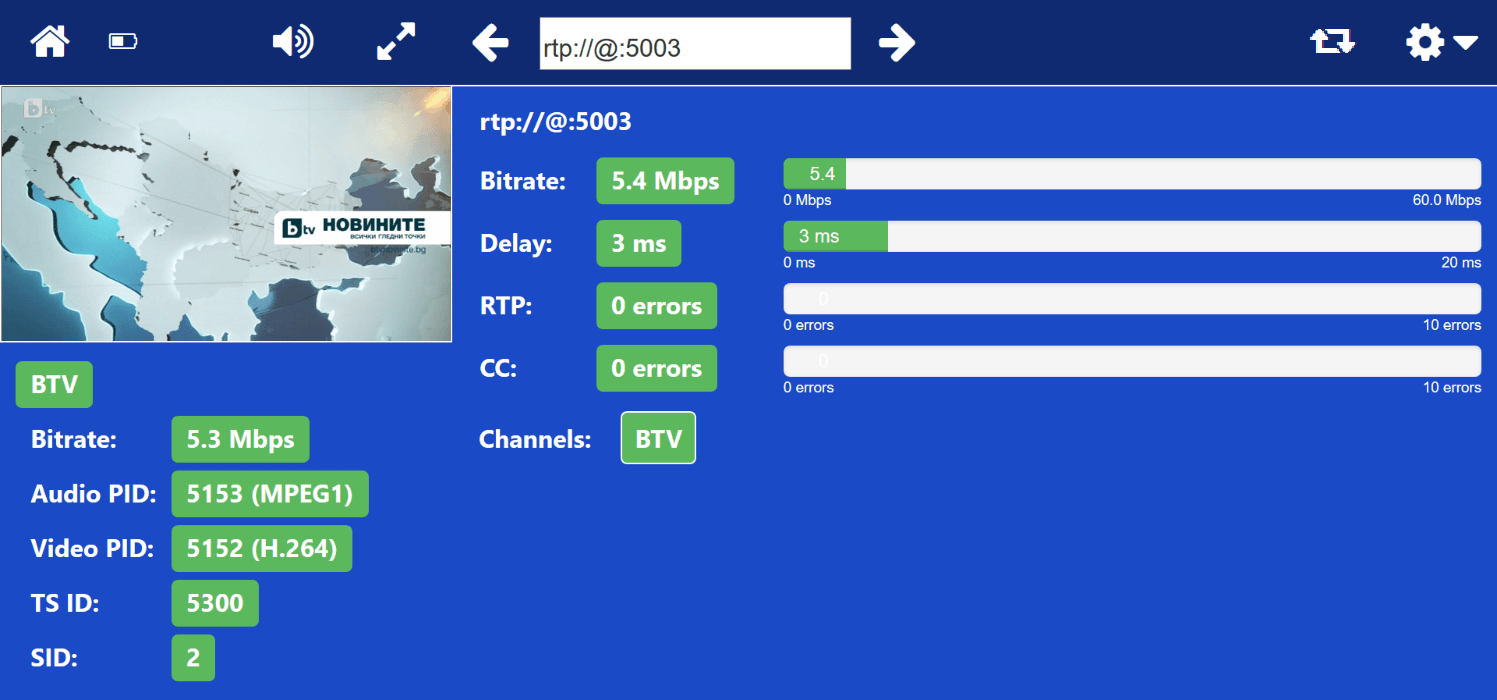

- IPTV measurements: Bitrate, RTP errors, CC errors, Packet Delays

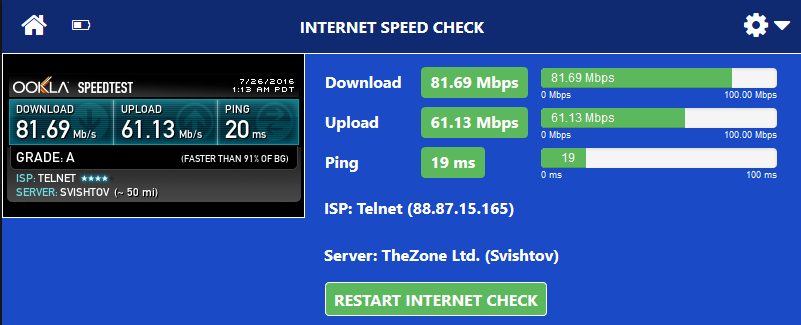

- Checks internet speed

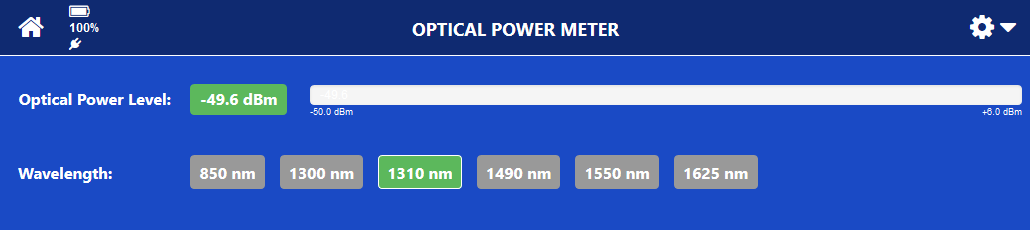

- Optical power range:/-50 dBm ~ +6 dBm/ or /-30 dBm ~ +26dBm/
- Wavelengths: 850nm/1300nm/1310nm/1490nm/1550nm/1625nm
Benefits
- Easy to operate and configure
- Can validate internet speed
- Up to 6 hours of battery life
- Portable and easy to carry
- Future proof - firmware upgradeable
- Best price on the market
