Multiviewer Stream Monitor solution for 24/7 realtime TV quality multiviewer monitoring Kvarta’s Multiview Stream Monitor is specially built for securing dependable monitoring of TSoIP streams for broadcasters that want to provide their clients with quality service round the clock. It is a powerful and professional software solution for creating multiview/mosaic video channels. The device monitors the quality of the video signal as well as MPEG TS parameters, delays, CC errors and bitrates. It can work on any Intel CPU with enough productivity or with a dedicated NVIDIA GPU. Using standard hardware makes it extremely easy to upgrade and support the hardware. The input sources can be TSoIP, OTT, DVB-C/T/T2/S/S2 depending on your requirements.

Features

Audio/Video Freeze detection in real time

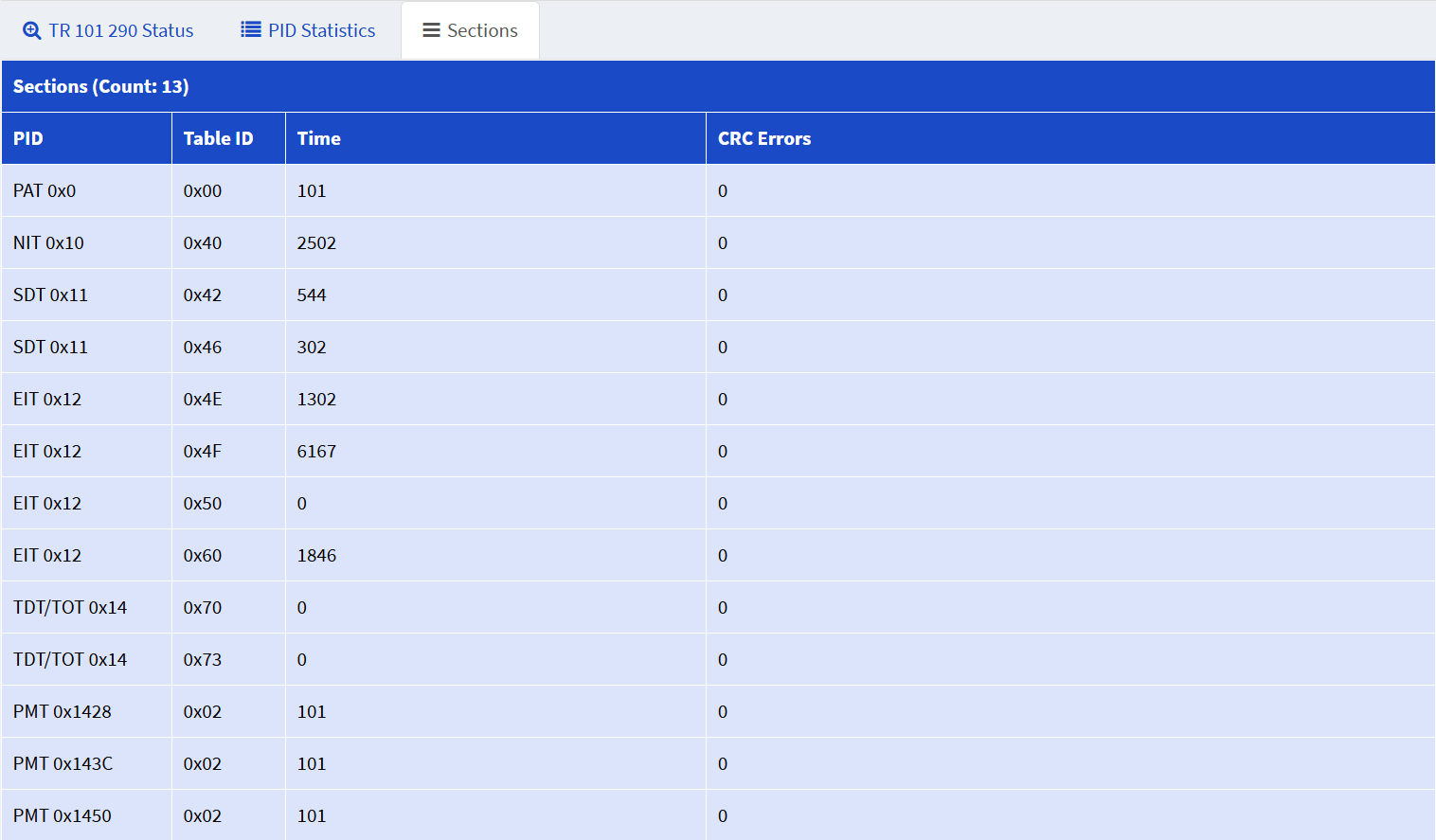

MPEG Monitoring
Embedded web server for easy configuration and control
E-mail notifications
SNMP

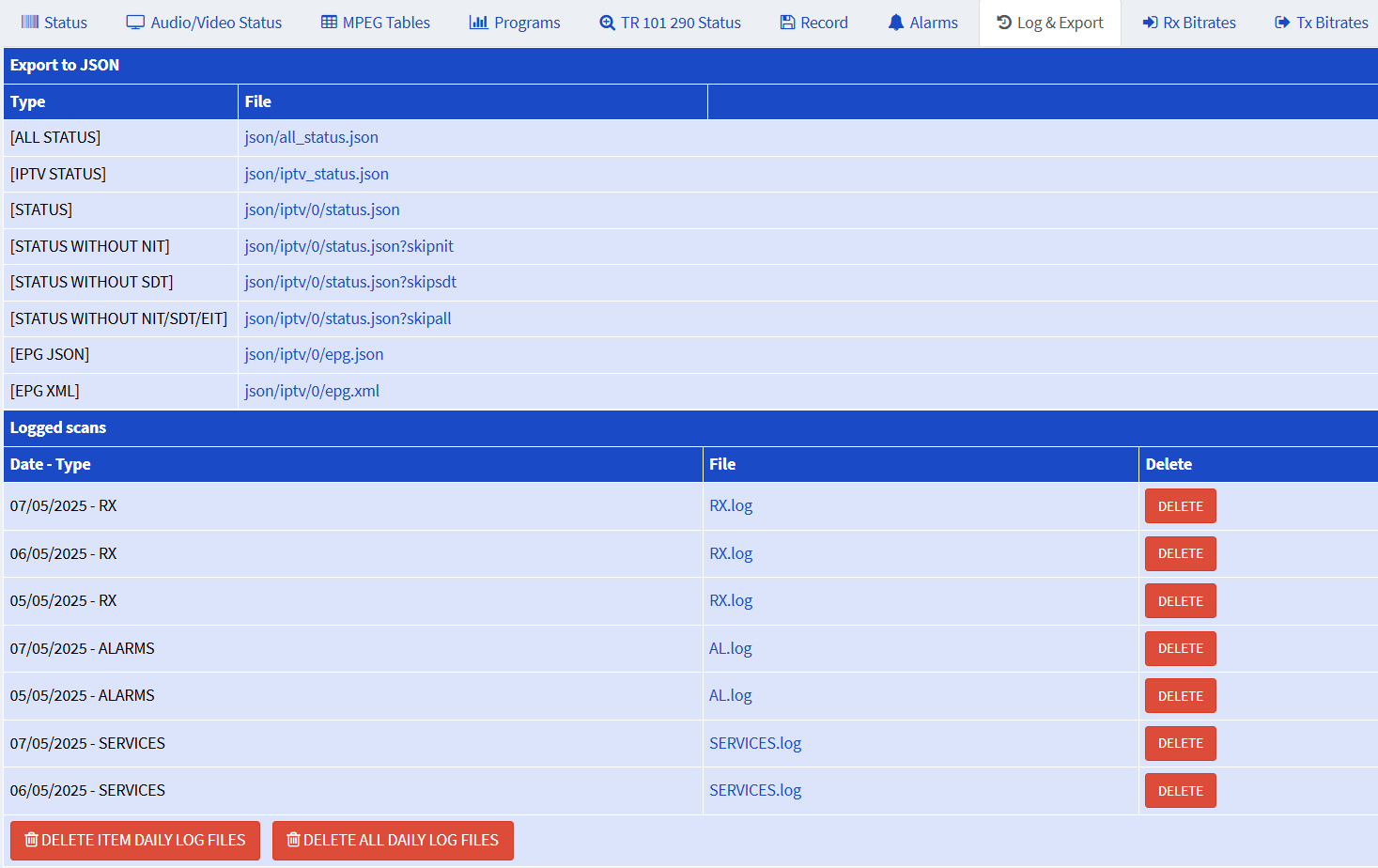

Alarms and log
Monitors UDP/RTP(unicast/multicast) mpeg TS streams, in both SPTS and MPTS modes

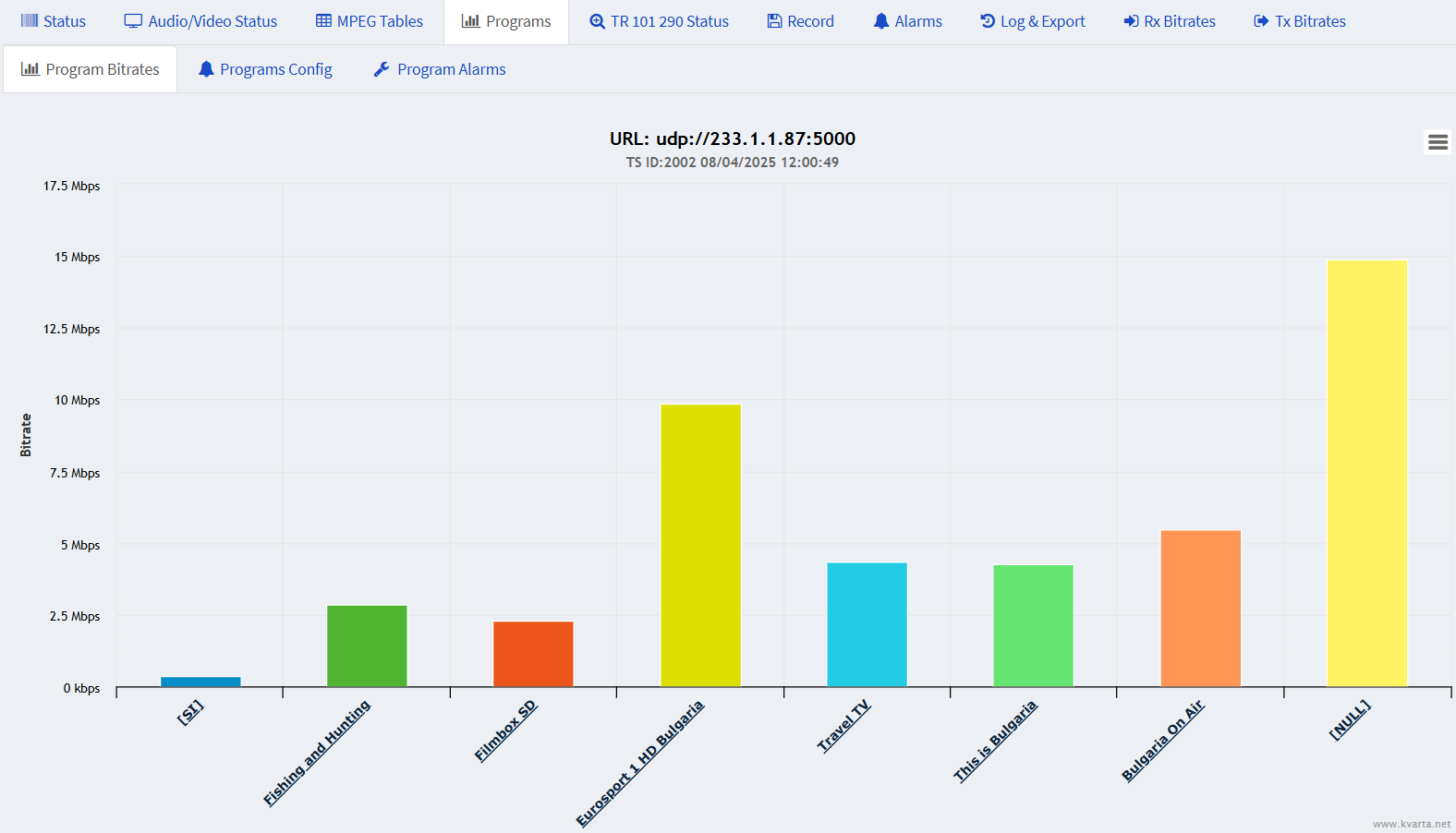

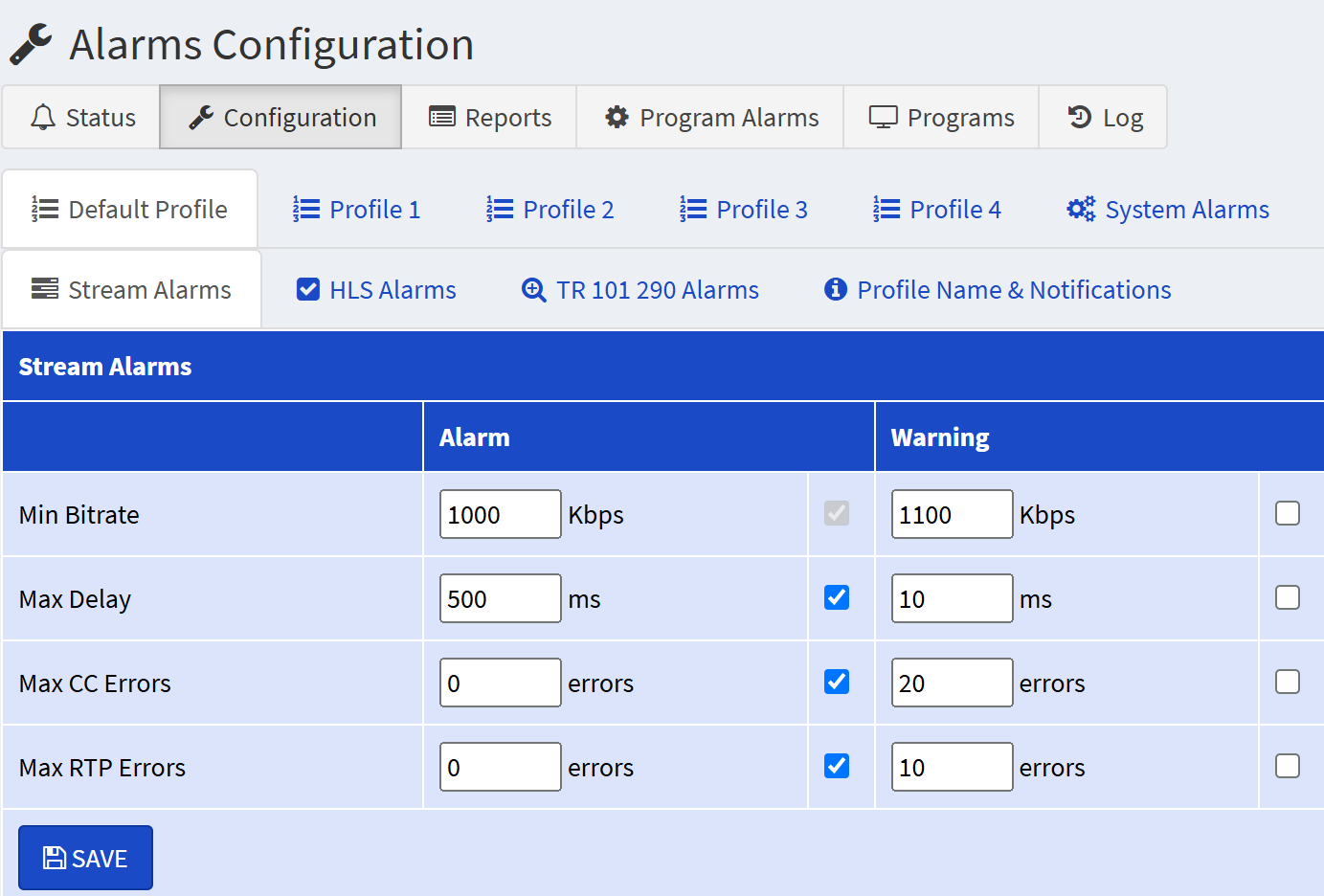

Monitors: Stream delay, RTP errors, CC errors and has Bitrate alarms

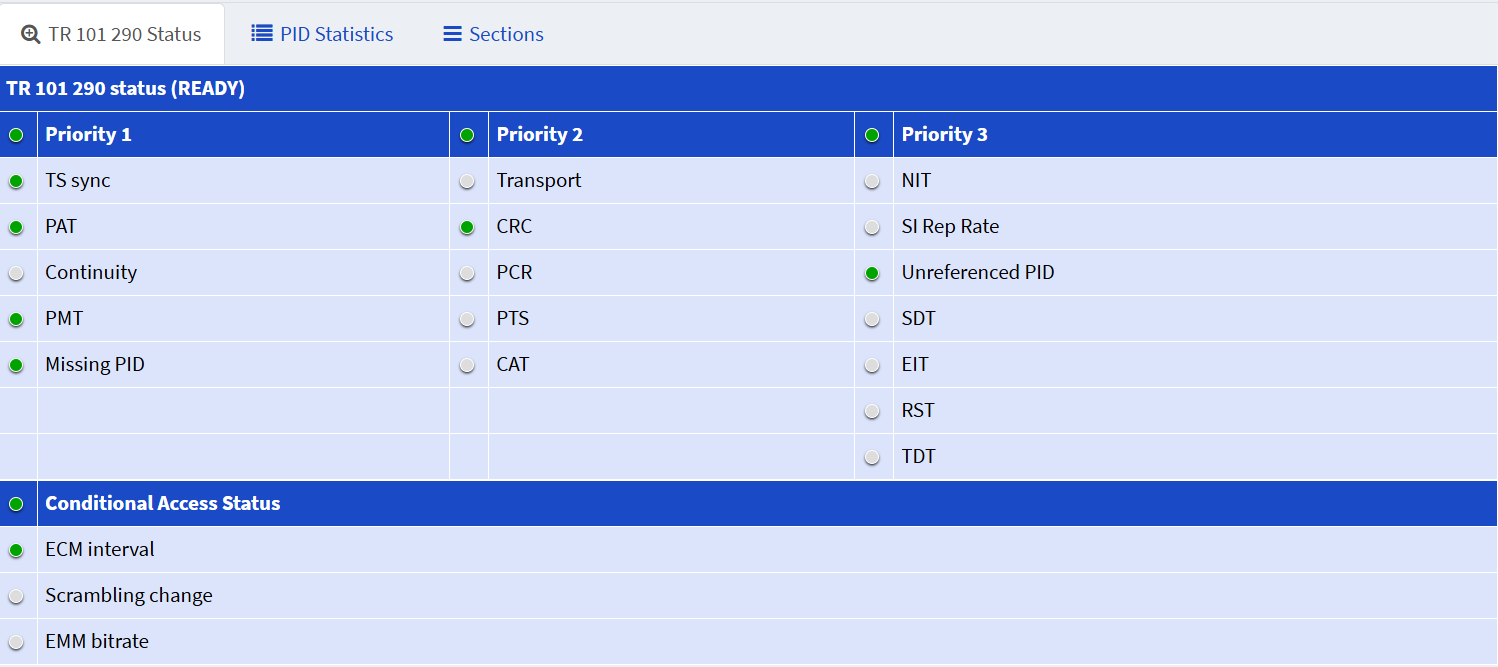

TR 101 290 Priority 1, 2, 3 alarms (optional)

Benefits

Easy to setup and configure. No software required. Just enter the web site of the device.
E-mail alarms for in time support
Logging alarm messages with accurate time

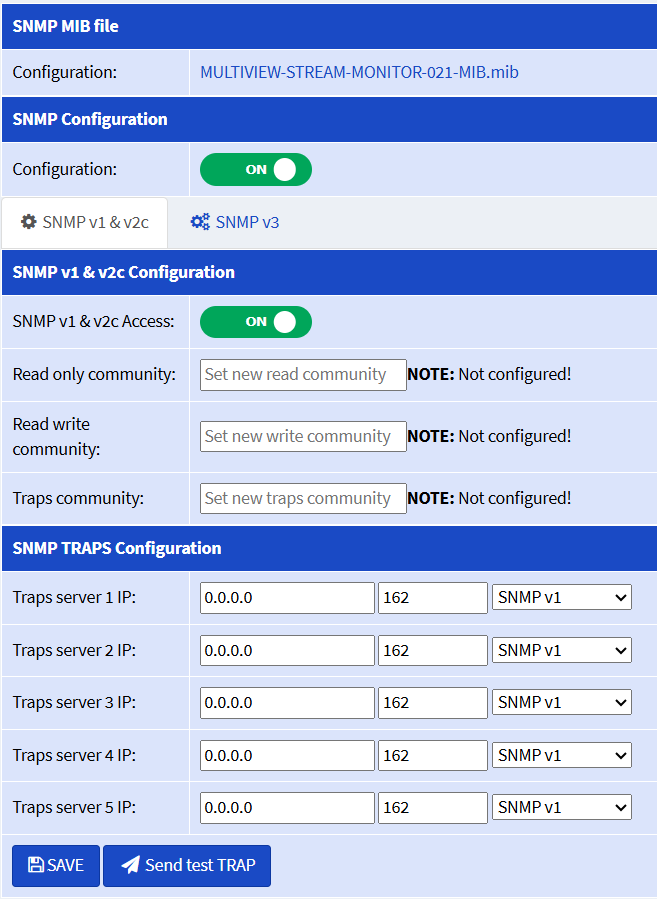

SNMP configuration and control for large broadcast networks
Future proof - firmware upgradeable
Benchmark for price/performance on the market Demo device Click on the button with the selected Demo Device below and take a closer look at the available features. MULTIVIEW ST DEMO DEVICE Use the following credentials when necessary: User: admin Password: admin

Gallery
