DVB Stream Monitor

DVB Stream Monitor is our 3rd generation DVB monitoring device. It integrates all current DVB standards allowing multiple carrier monitoring. The DVB Stream Monitor is a powerful and professional yet affordable solution for standalone DVB-T/T2/S/S2/C and Analog TV monitoring at the transmitter site or in the coverage area. Through RF inputs, the unit sequentially monitors a set list of channels and continuously ensures that your DVB network complies with both legislation and your expectations.

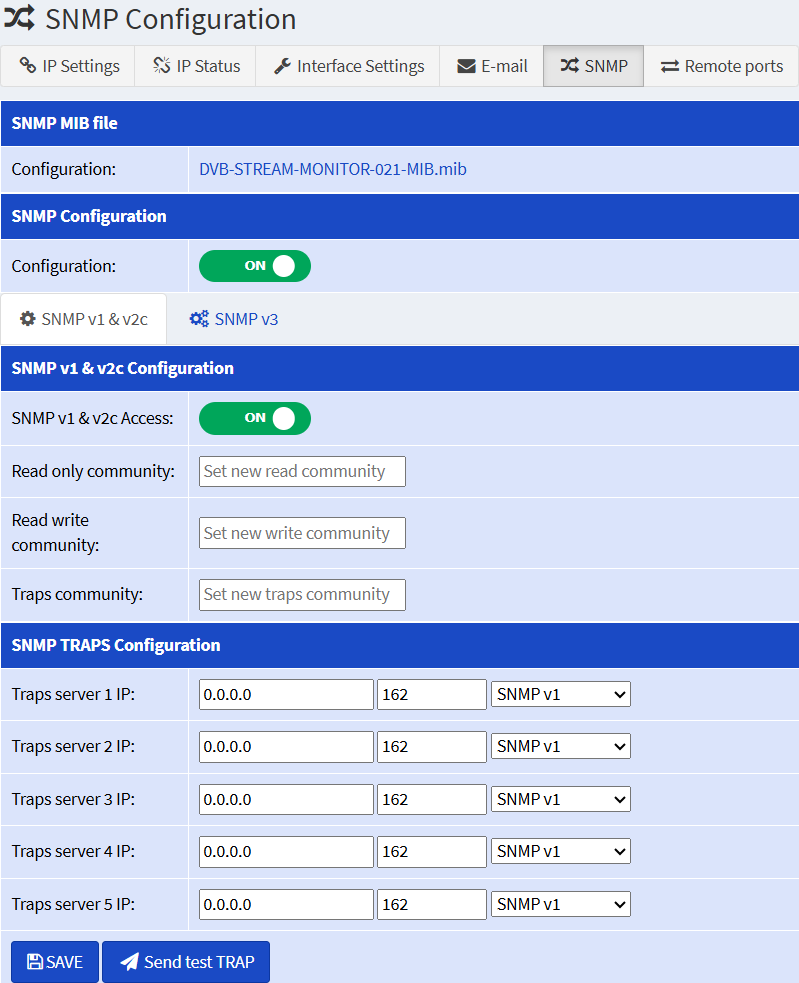

With its 2 gigabit ethernet interfaces, the DVB Stream Monitor can do also IPTV monitoring for unicast/multicast UDP streams. The device can be controlled remotely using the user-friendly embedded web site or an SNMP-Based network management system.

DVB Monitor offers innovative functions such as multi-channel monitoring, audio/video freeze and black screen detection automatic scanning and remote control.

MPEG Monitoring

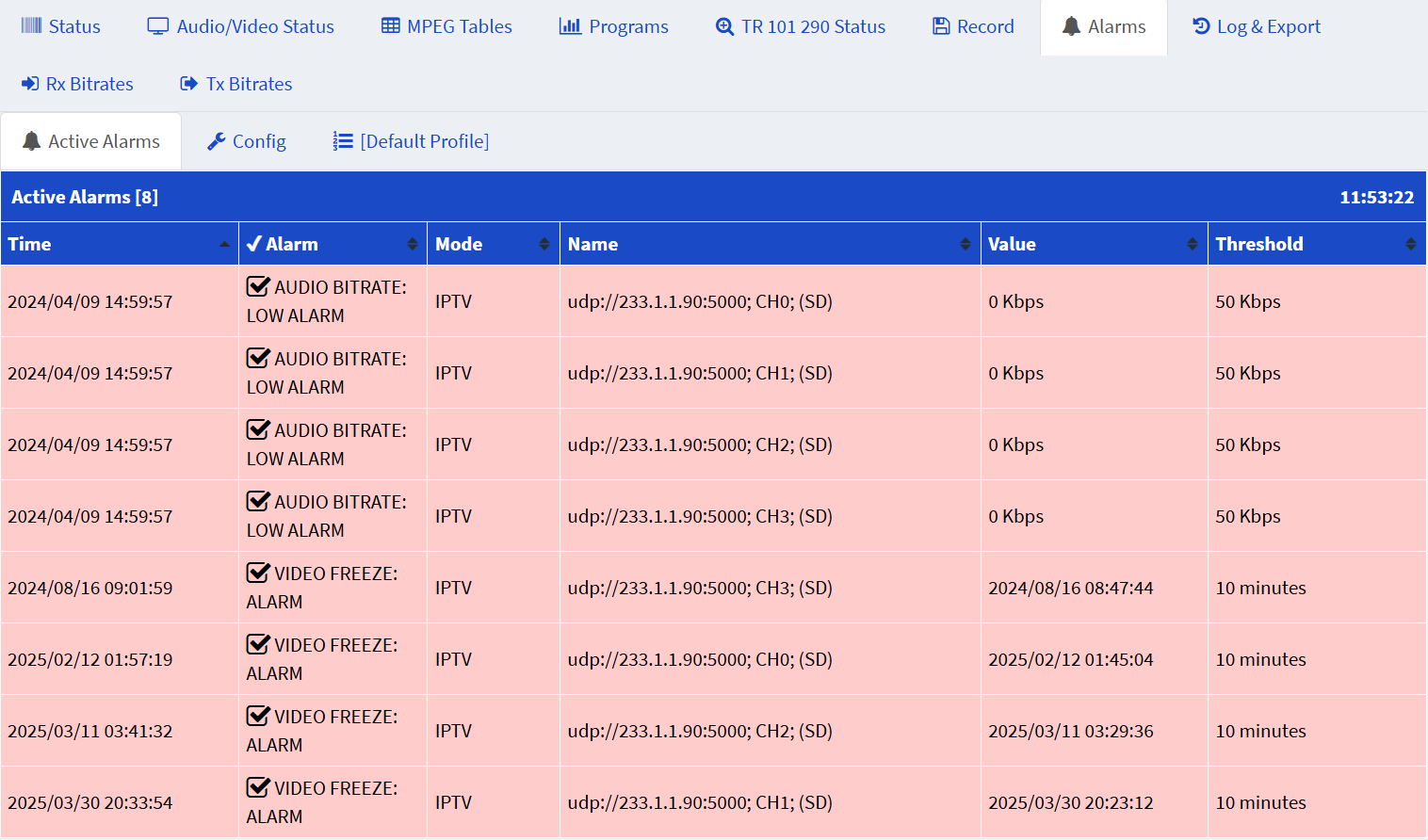

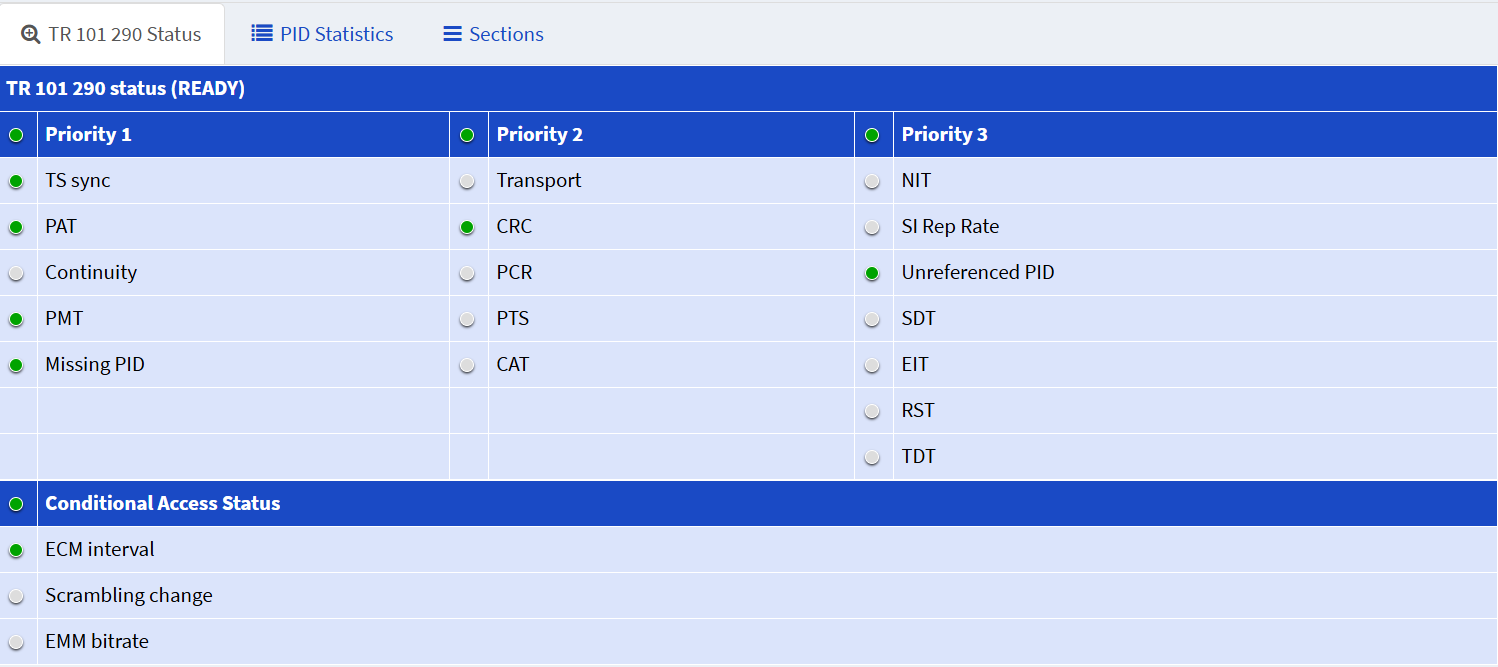

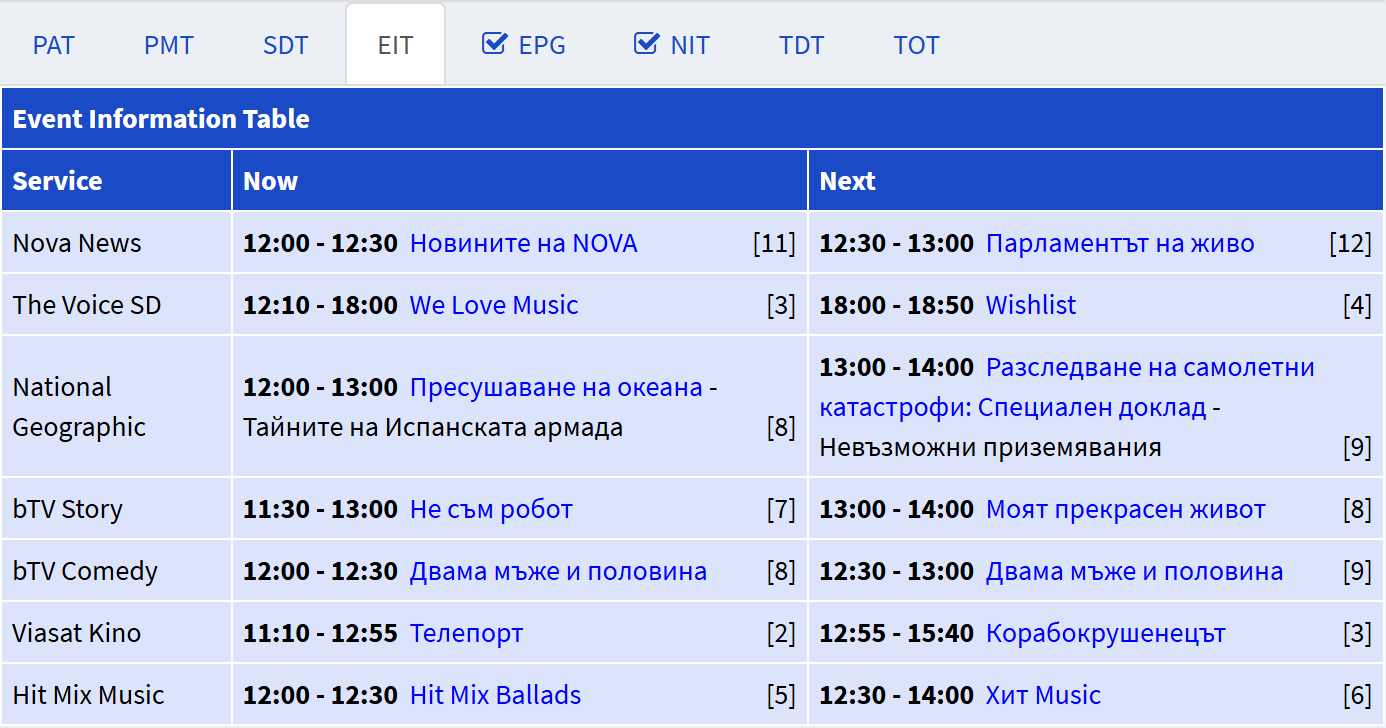

The DVB Monitor is able to decode and monitor the MPEG transport stream (PAT, PMT, NIT, SDT, CAT, TDT, and TOT). TR101290 monitoring is also supported. You can set alarms for missing audio/video streams. The DVB Monitor can be connected to an SNMP server for automated remote configuration and monitoring of multiple devices. Provided with a quick-start guide, the device is easy to install and has a user-friendly embedded website. The DVB Monitor is future proof as it supports remote firmware upgrades to add all the new functionality required.
