DVB Modulator

The IP to DVB Modulator is headend built for small to large cable or terrestrial TV broadcasters. It uses proven 24/7 architecture with user friendly web configuration. The DVB Modulator is extremely flexible in terms of IP streams input (UDP/RTP/HLS/RTSP are supported) both MPTS and SPTS. MPTS (Multiprogram transport srteams) streams can be rebroadcasted as they are. SPTS (Single program transport streams) can be multiplexed into new MPTS streams and directly modulated into desired DVB-C, QAMB, DVB-T, ISDB-T or ATSC broadcasting standard. Besides that EPG (Electronig Program Guide) Generator is extremely flexible as it supports downloading XMLTV files from multiple sources as well as inputting EIT UDP streams.

The DVB Modulator supports CI cards (external or with tuner) for encrypted channels. Support for 16 QAM DVB-C Modulator PCIe Card is also available. Both features are optional.

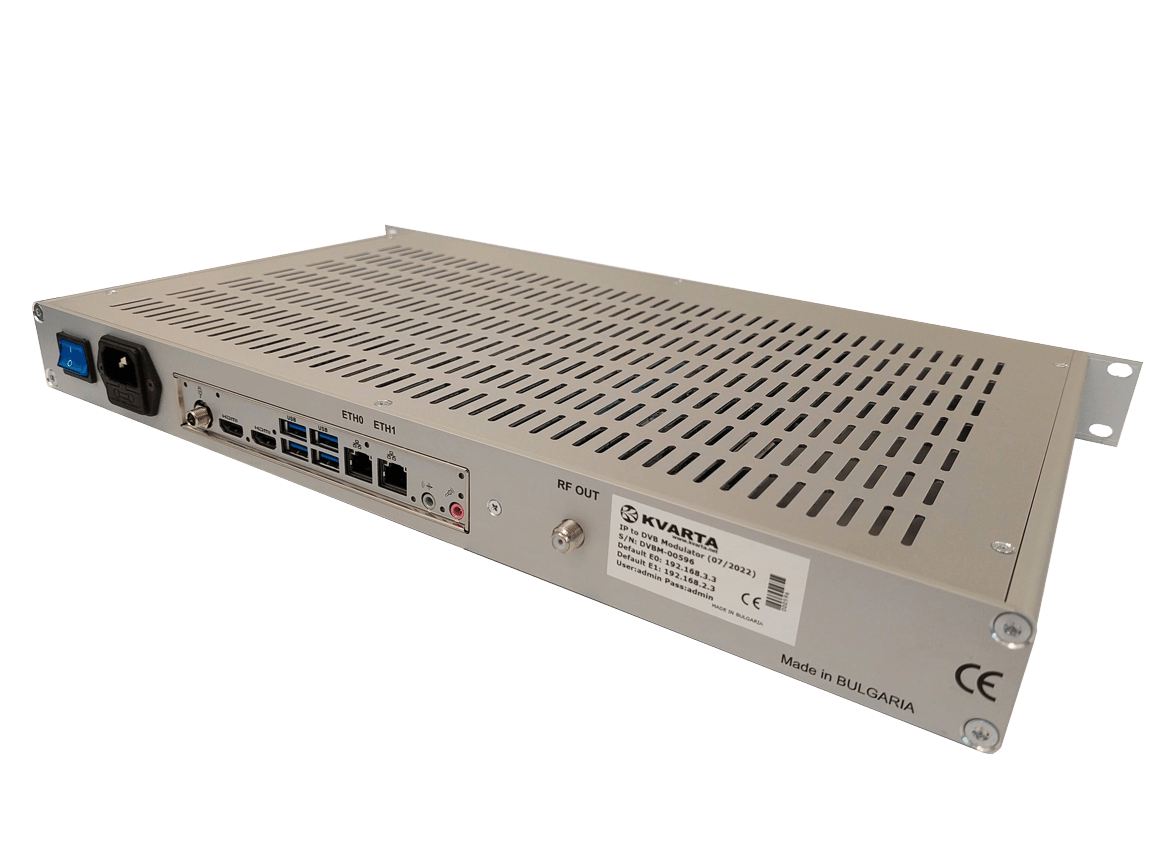

Kvarta’s DVB Headend is a powerful and professional yet affordable solution for cable TV operators, it could also be used in hospitals,hotels or other small RF coaxial cable networks. The device is enclosed in compact 1U rack unit with no fans and extremely small current consumption.

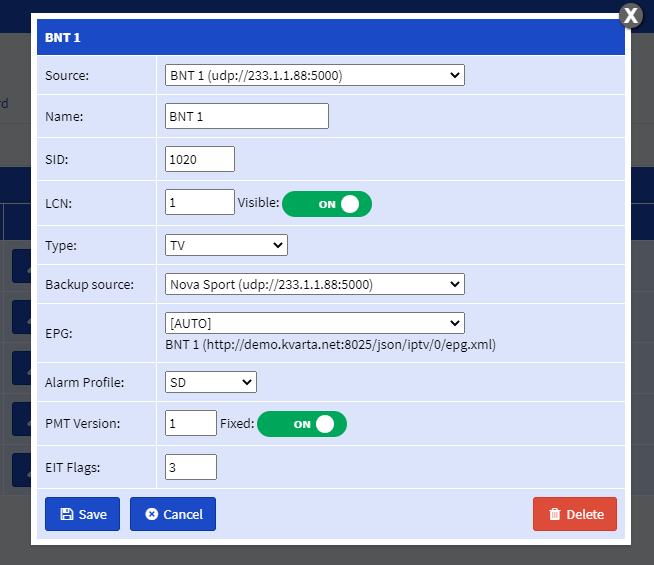

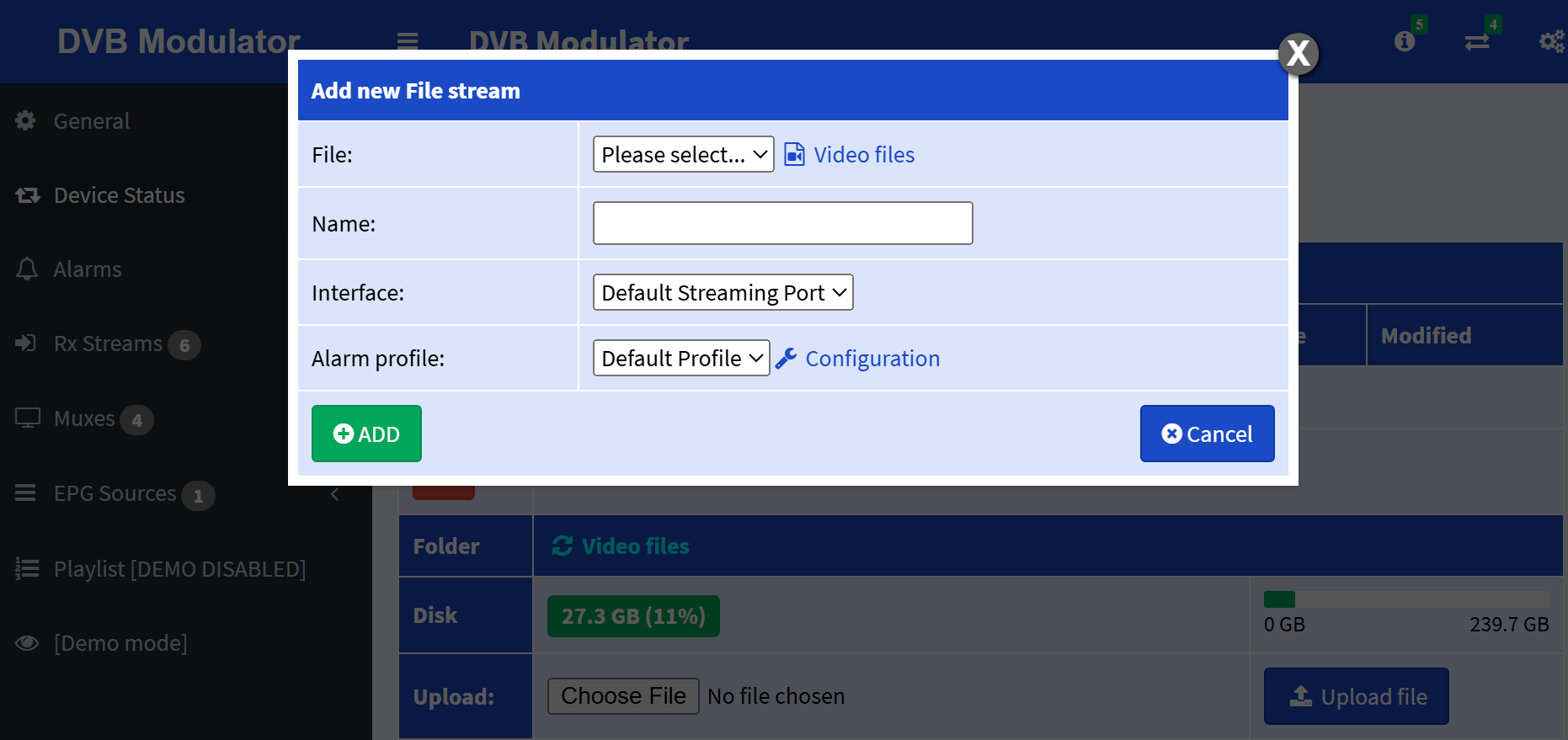

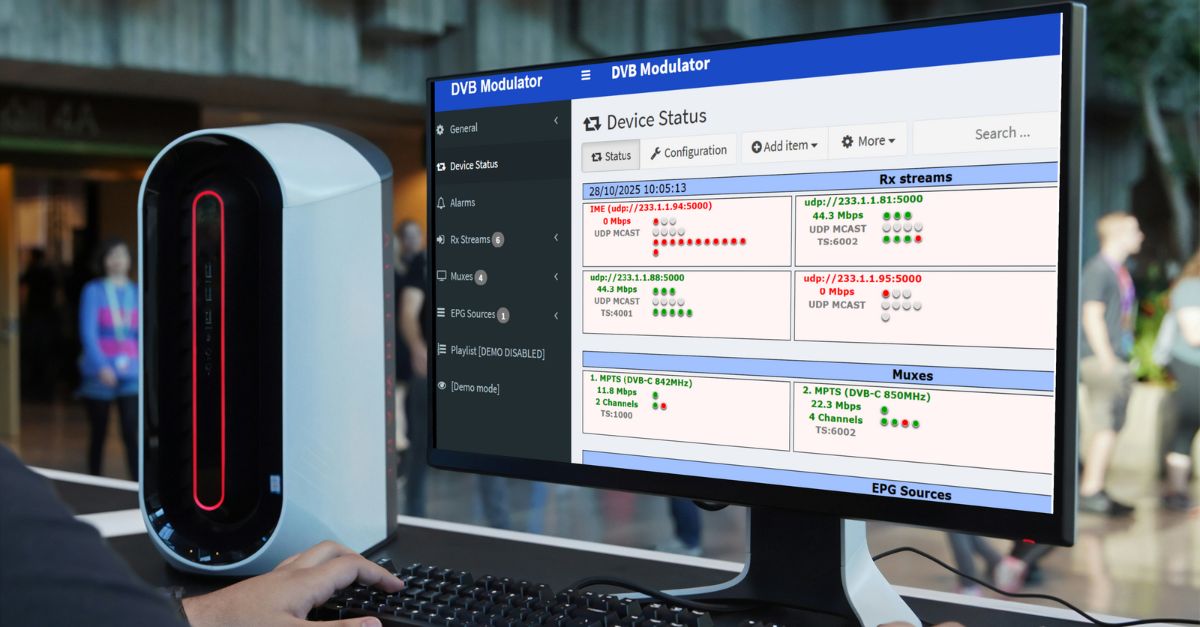

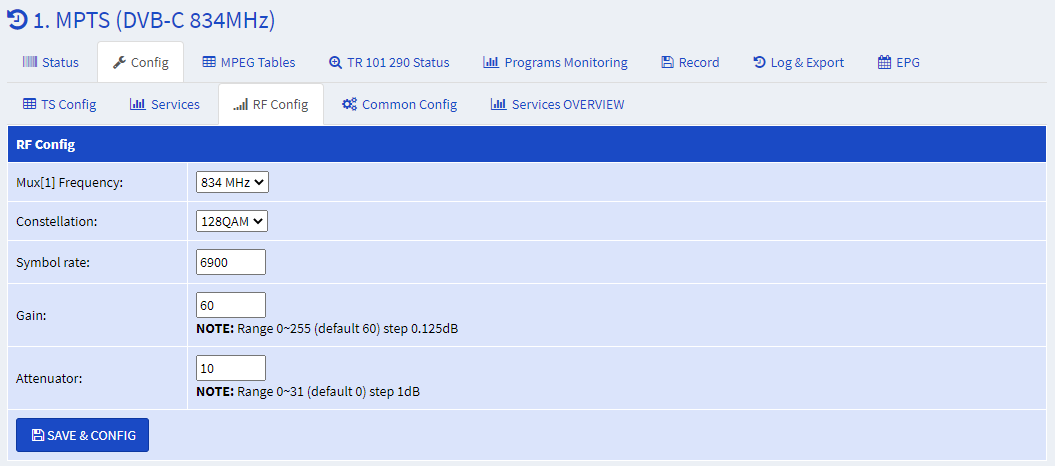

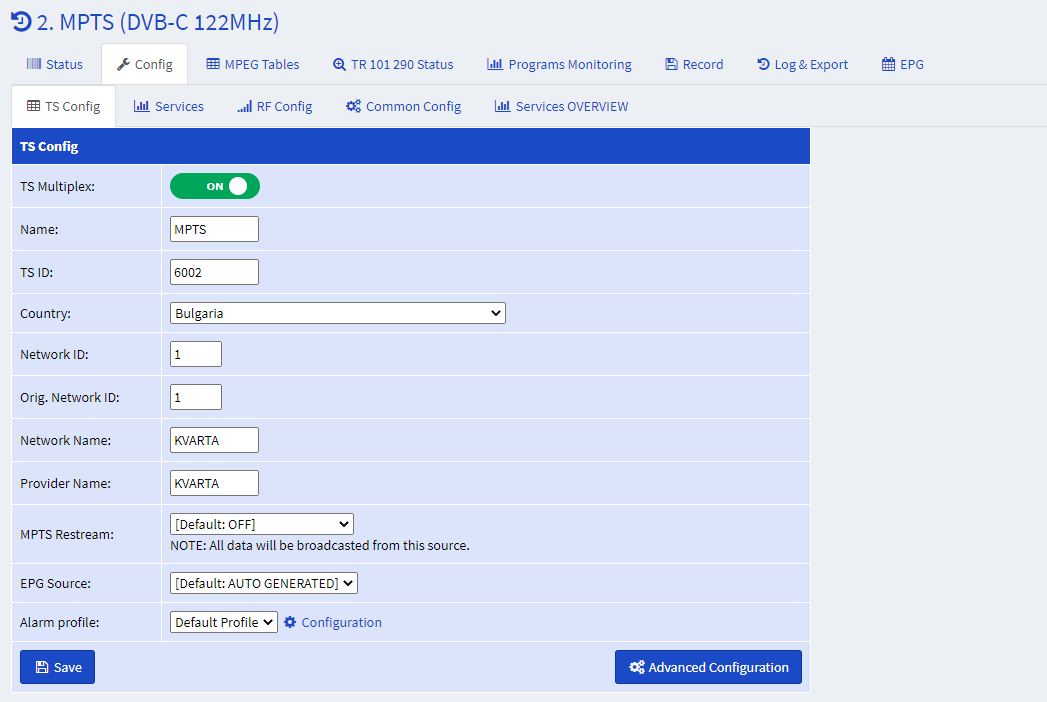

With its two gigabit Ethernet interfaces, the IP to DVB Modulator can be controlled and configured remotely using the user-friendly embedded web site or an SNMP-Based network management system.
