RDS Encoder V4

Supports all groups and features of the RDS/RBDS standards
Fully UECP compliant
RT+ support
All ODA application support
Embedded Webserver & SNMP

Use cases

What the RDS Encoder V4 solves

RDS encoding with dynamic text, RT+ and ODA

Scrolling PS and RT, RT+, UECP and open data applications such as TMC.

Read the use case

Overview

Besides all the dynamic PS and RT text display features that you can get from RDS300 and the RT+ and SNMP capabilities of RDS500, this top class RDS Encoder supplies all the other ODA applications and UECP commands, supports and enables configuration and monitoring of the RDS encoder from multiple points.

Features

Supports all groups and features of the RDS/RBDS standards
Fully UECP compliant
RT+ support
All ODA application support
Embedded Webserver & SNMP
Embedded Scheduler

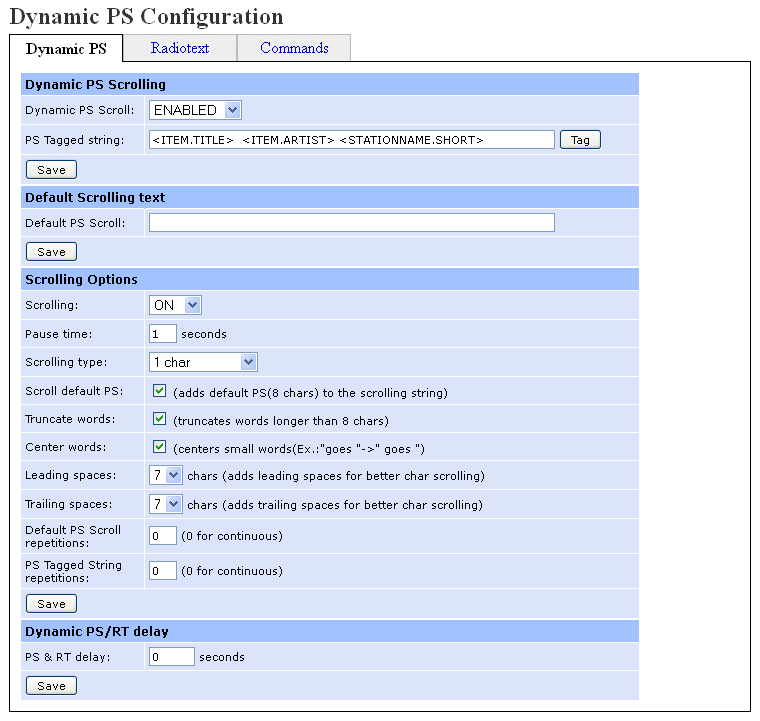

Scrolling PS/RT
No trimmers or potentiometer - Digital level and phase adjustment
Remote monitoring
4 TCP/UDP ports for UECP/ASCII commands ODA (Open Data Applications) There are many applications that can use the RDS/RBDS technology, bringing more services to your listeners and more revenue to the Radio station/Network. These applications cannot be deployed with any RDS/RBDS encoder as they require ODA. TMC: Traffic Message Channel TMC delivers up-to-date traffic information and voice messages direct to a user’s satellite navigation system. Paging Remote control applications street lighting, billboards etc. Emergency Alert System The RDS1000 is compatible with services that relay data to emergency providers.

Gallery
