RF Power Monitor
Remote 24/7 monitoring of RF broadcasting equipment
- Remote 24/7 monitoring of your broadcasting equipment
- Forward Power
- Reflected Power
- VSWR
- Configurable alarms
Use cases
What the RF Power Monitor solves
DVB-T/T2 transmitter and coverage monitoring
Measure MER, BER, C/N and level at the transmitter site and in the coverage area.
Read the use caseFM radio and RDS monitoring
Monitor FM level, quality and RDS at the transmitter or in the coverage area.
Read the use caseTransmitter RF power and VSWR monitoring
Forward power, reflected power and VSWR from the transmitter to the antenna.
Read the use caseSNMP and e-mail alarms for unattended broadcast sites
Every KVARTA device reports to your NMS, with no extra software.
Read the use caseOverview

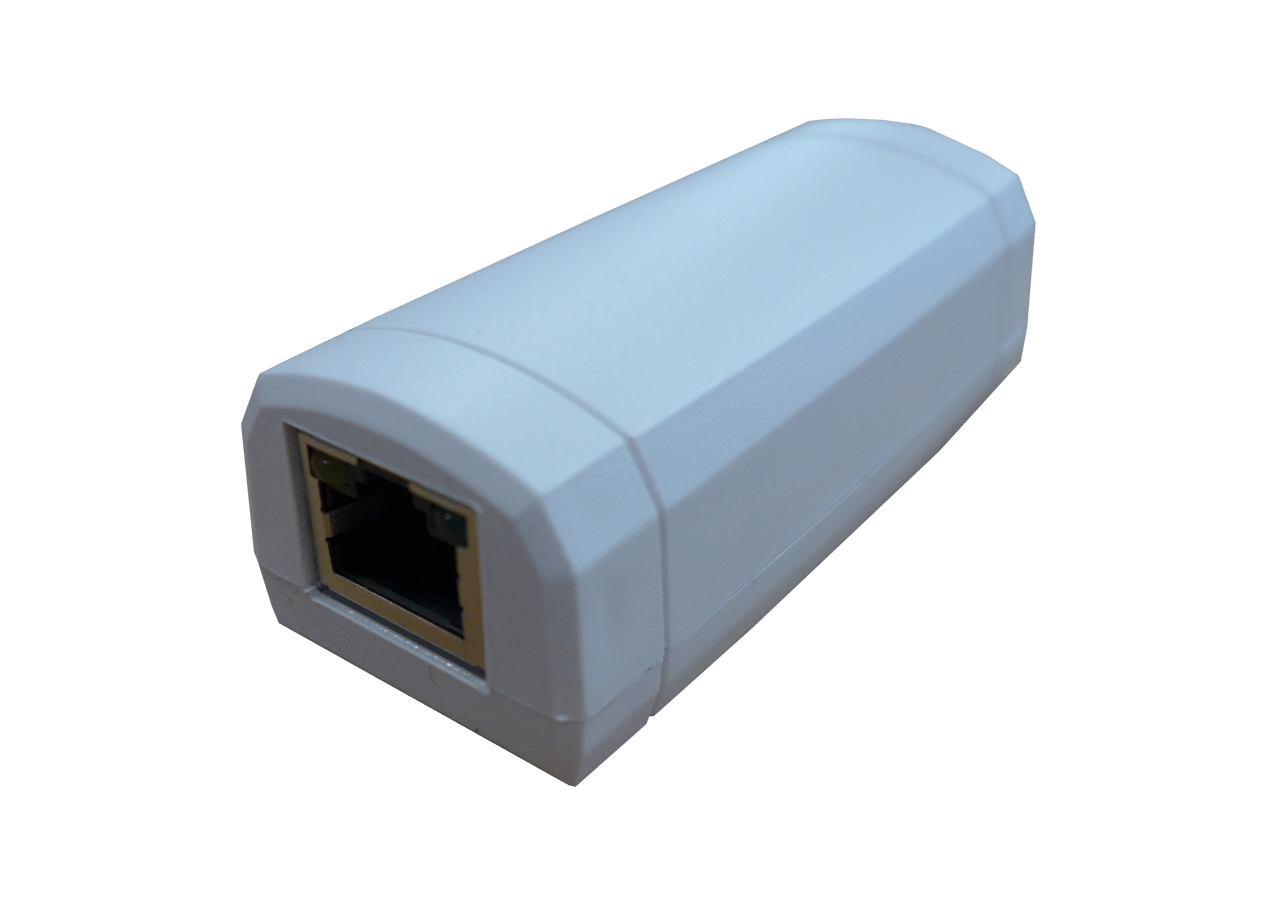

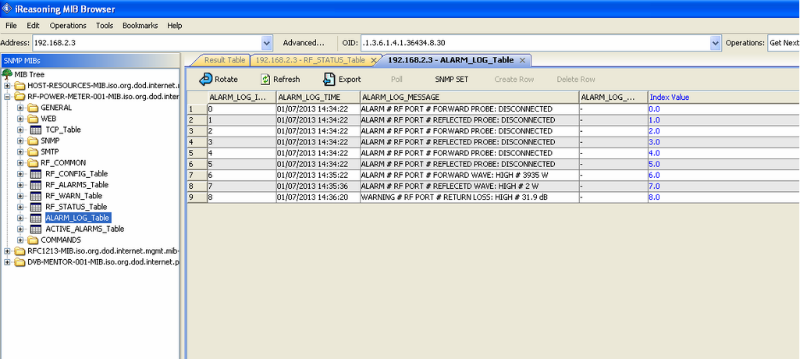

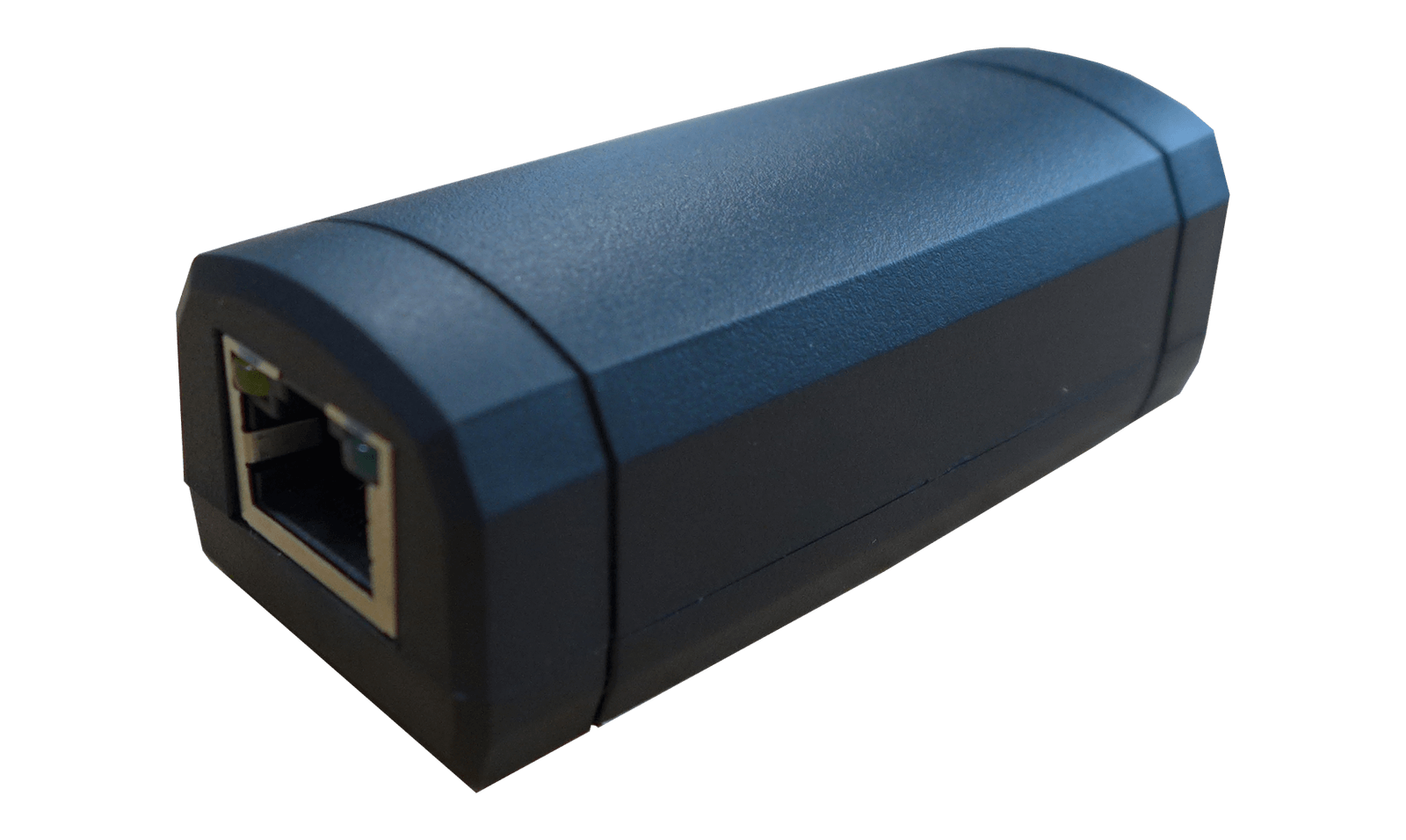

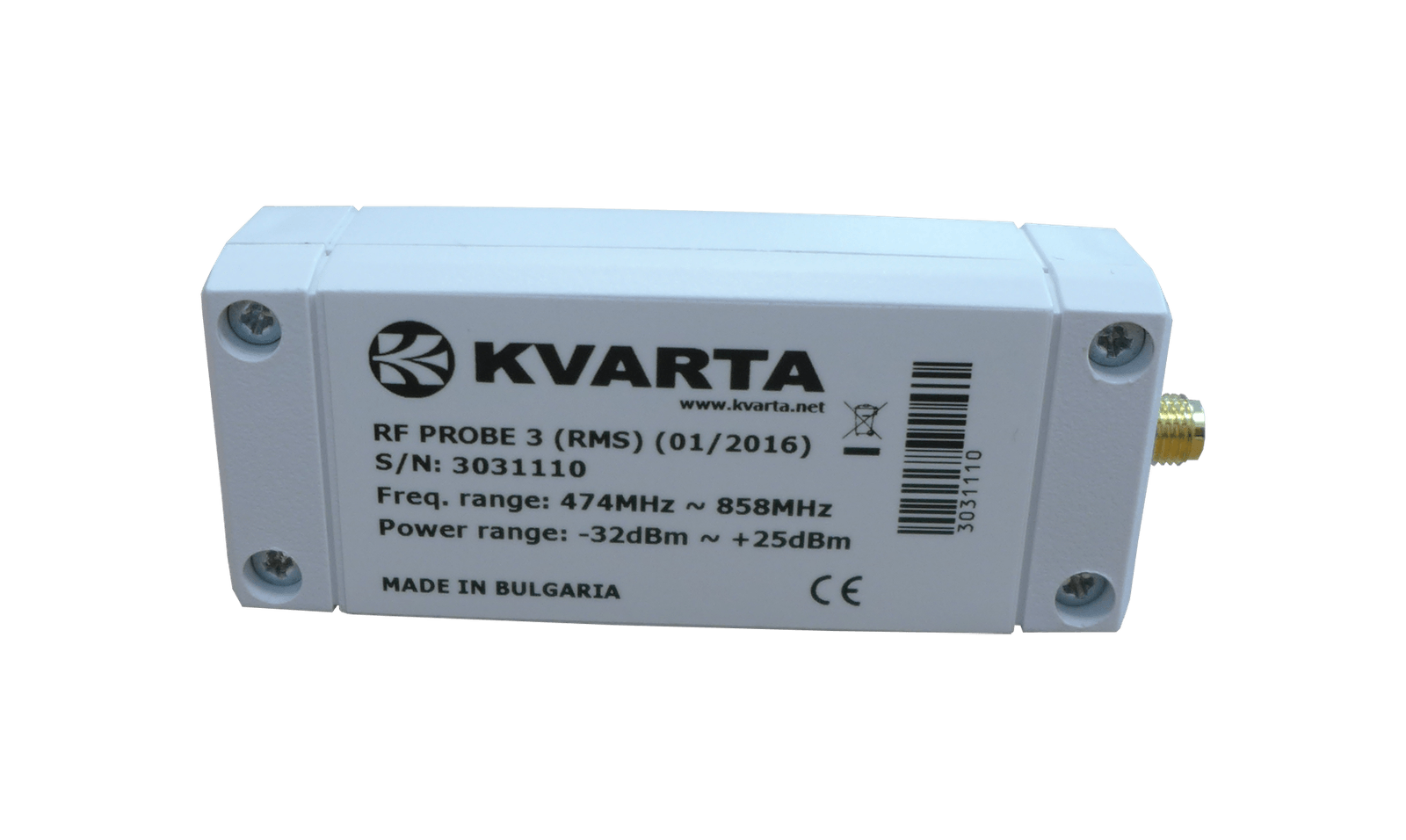

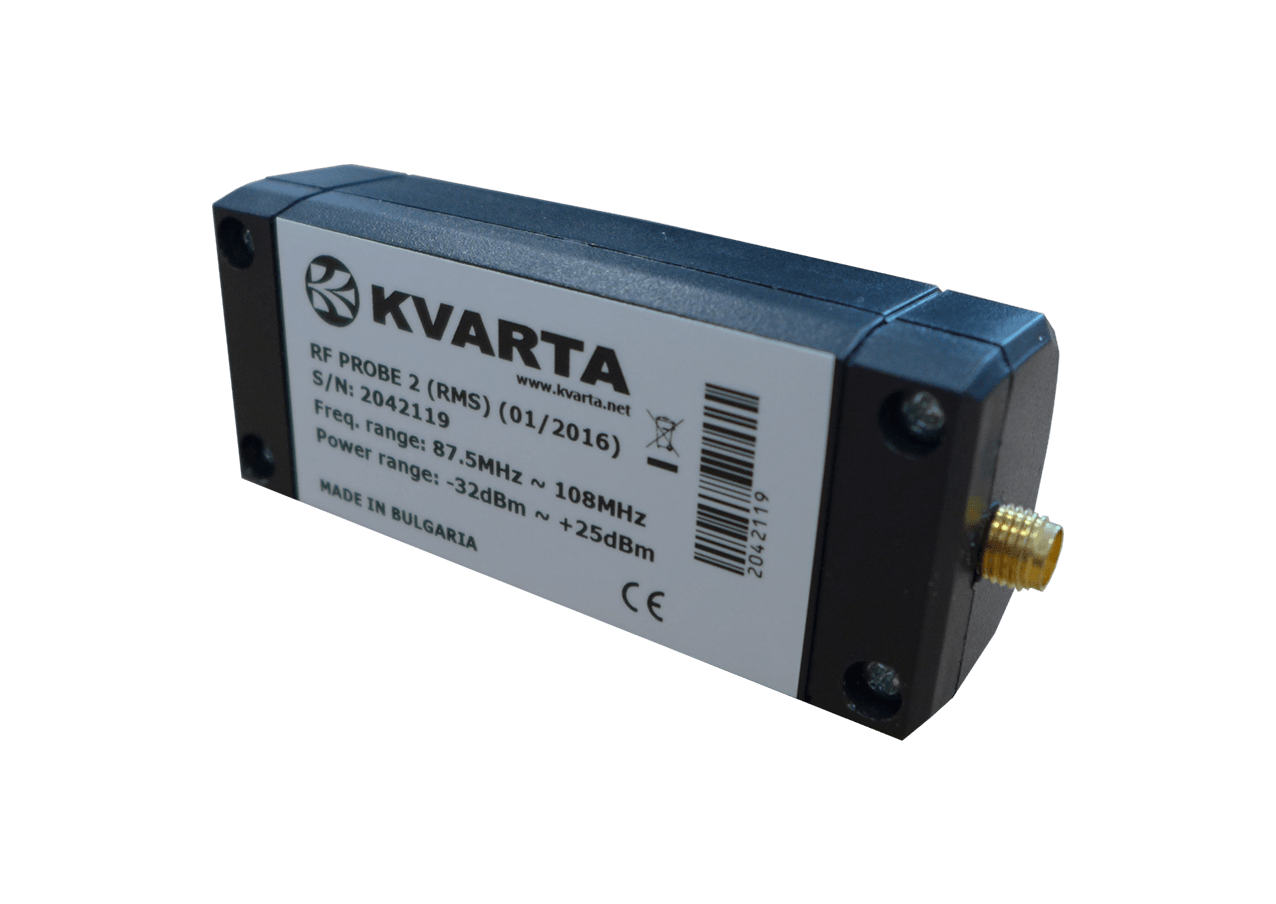

The RF POWER MONITOR can control up to 8 external RF measuring probes. It messures reflected and forward power and calculates VSWR. The instrument has a user friendly web site management as well as SNMP support to allow network management. The RF power monitoring device can be configured for VSWR and Power limits to give alarms as SNMP traps or sending e-mail alarms. All alarms are logged and time stamped to the onboard micro SD card. The RF Power Meter allows you to control your RF network installation from transmitters to the antenna.
Features
- Remote 24/7 monitoring of your broadcasting equipment
- Forward Power
- Reflected Power
- VSWR
- Configurable alarms
- Web server
- SNMP Enabled with traps
- E-mails
- Log file
Benefits
- Control RF network from the transmitter to the antenna
- Embedded Web server with SNMP enabled with traps
- Remote site monitoring
- Rack mount
- Future proof - firmware upgradeable
- Best price on the market
Gallery
RF Power Monitor
Tap a photo to enlarge
